Varilla roscada de acero inoxidable A2-70
Varilla

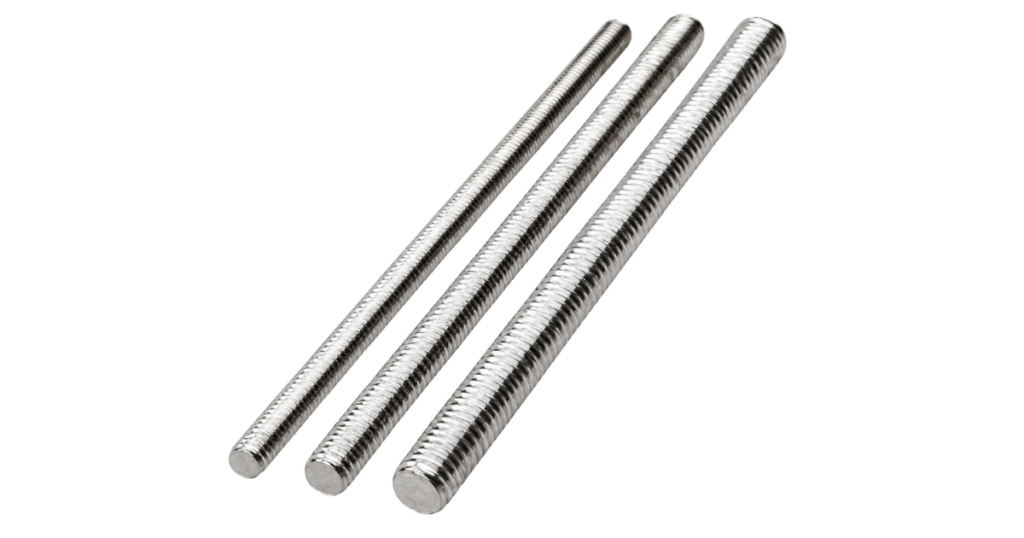

Varilla roscada de acero inoxidable A2-70
Varilla roscada de acero inoxidable A2-70 con rosca continua, diseñada para aplicaciones industriales y estructurales que requieren alta resistencia a la corrosión y desempeño confiable en ambientes agresivos.
- Material: Acero inoxidable A2
- Propiedades mecánicas: A2-70 (ISO 3506-1 / DIN 267)
- Rosca: Métrica (ISO 724 / ISO 965-1)
- Acabado: ASTM A380 / A380M
- Aplicación: Uso industrial, químico y estructural
- Resistencia: Alta resistencia a corrosión (agua salada, químicos, ácido sulfúrico)
DIMENSIONES
DIN 976
MATERIAL
Acero inoxidable A2-70
HILOS
Métrica
RESISTENCIA
Alta resistencia química
FINALIZADO
ASTM A380 / A380M
TABLA INFORMATIVA
| Diámetro nominal | Diámetro | Diámetro mayor | |
|---|---|---|---|
| Max. | Min. | ||
| #0-80* | .0600 | .0595 | .0563 |
| #2-56* | .0860 | .0854 | .0813 |
| #4-40* | .1120 | .1112 | .1061 |
| #5-40* | .1250 | .1242 | .1191 |
| #6-32* | .1380 | .1372 | .1312 |
| #8-32 | .1640 | .1631 | .1571 |
| #10-24* | .1900 | .1890 | .1818 |
| #10-32* | .1900 | .1891 | .1831 |
| #12-24* | .2160 | .2150 | .2078 |
| 1/4-20 | .2500 | .2489 | .2367 |
| 1/4-28 | .2500 | .2490 | .2392 |
| 5/16-18 | .3125 | .3113 | .2982 |
| 5/16-24 | .3125 | .3114 | .3006 |
| 3/8-16 | .3750 | .3737 | .3595 |
| 3/8-24 | .3750 | .3739 | .3631 |
| 7/16-14 | .4375 | .4361 | .4206 |
| 7/16-20 | .4375 | .4362 | .4240 |
| Longitud | Tolerancia |
|---|---|
| 3' | +/- 1/4" |
| 6' - 12' | +/- 1/2" |

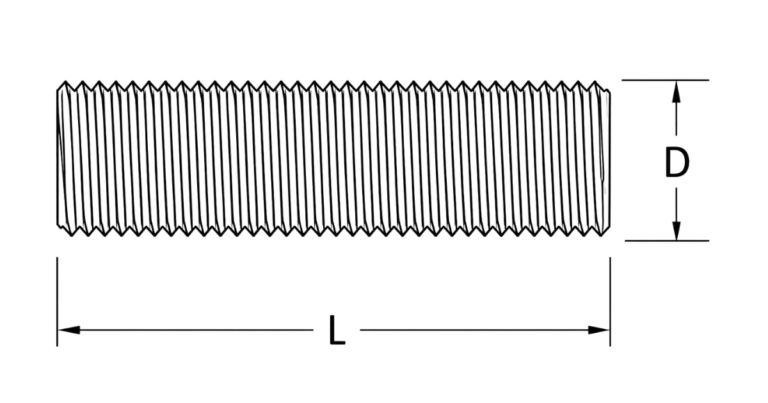

| Diámetro | Tamaño nominal | D (Diámetro mayor) | |
|---|---|---|---|
| Max. | Min. | ||
| 1/2-13 | .5000 | .4985 | .4822 |
| 1/2-20 | .5000 | .4987 | .4865 |
| 9/16-12 | .5625 | .5609 | .5437 |
| 9/16-18 | .5625 | .5611 | .5480 |
| 5/8-11 | .6250 | .6233 | .6051 |
| 5/8-18 | .6250 | .6236 | .6105 |
| 3/4-10 | .7500 | .7482 | .7288 |
| 3/4-16 | .7500 | .7485 | .7343 |
| 7/8-9 | .8750 | .8731 | .8523 |
| 7/8-14 | .8750 | .8734 | .8579 |
| 1-8 | 1.000 | .9980 | .9755 |
| 1-14 | 1.000 | .9984 | .9881 |
| 1 1/8-7 | 1.125 | 1.1228 | 1.0982 |
| 1 1/8-8* | 1.125 | 1.1229 | 1.1079 |
| 1 1/8-12 | 1.125 | 1.1232 | 1.1118 |
| 1 1/4-7 | 1.250 | 1.2478 | 1.2232 |
| 1 1/4-8* | 1.250 | 1.2479 | 1.2329 |
| 1 1/4-12 | 1.250 | 1.2482 | 1.2368 |
| 1 3/8-6 | 1.375 | 1.3726 | 1.3453 |
| 1 1/2-6 | 1.500 | 1.4976 | 1.4703 |
| 1 1/2-8* | 1.500 | 1.4978 | 1.4828 |
| 1 1/2-12 | 1.500 | 1.4981 | 1.4867 |
| 1 3/4-5 | 1.750 | 1.7473 | 1.7165 |
| 2-4.5 | 2.000 | 1.9971 | 1.9641 |
